RATTLER

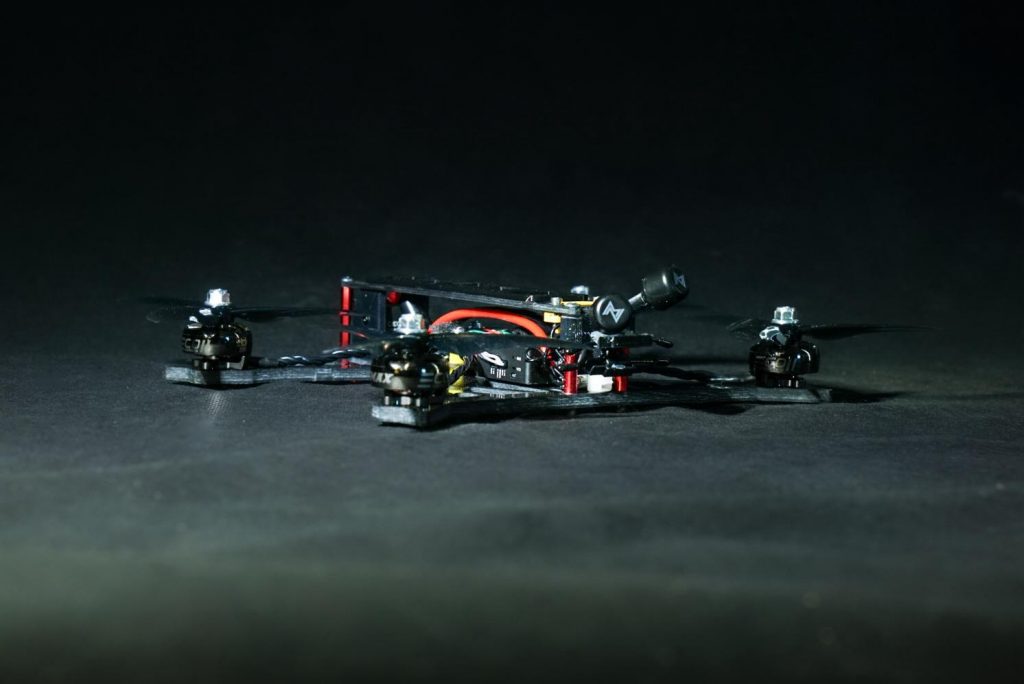

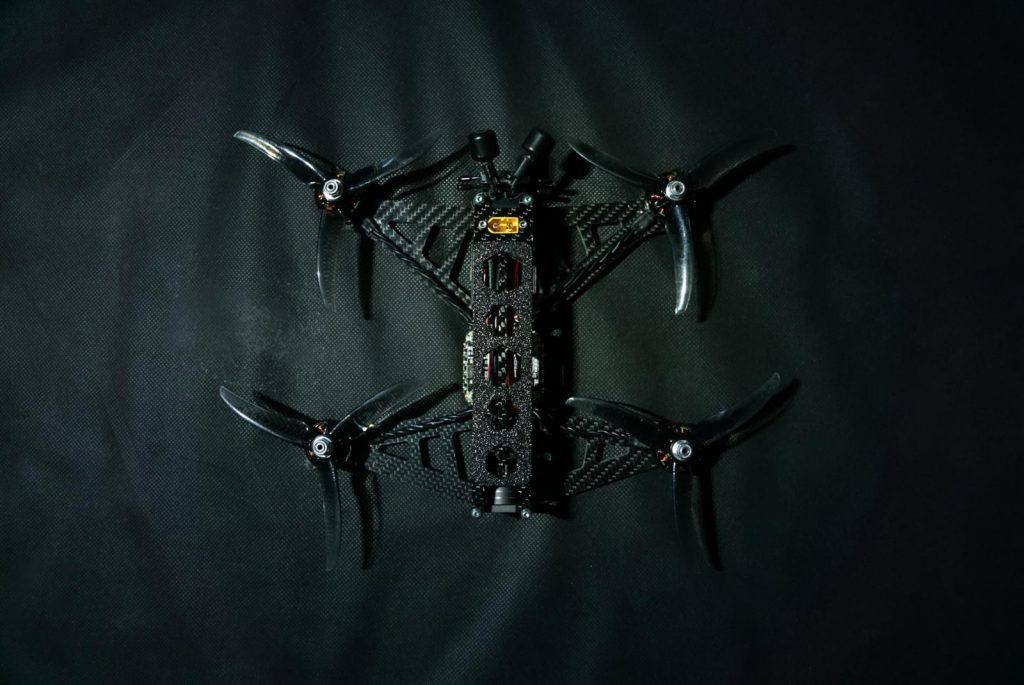

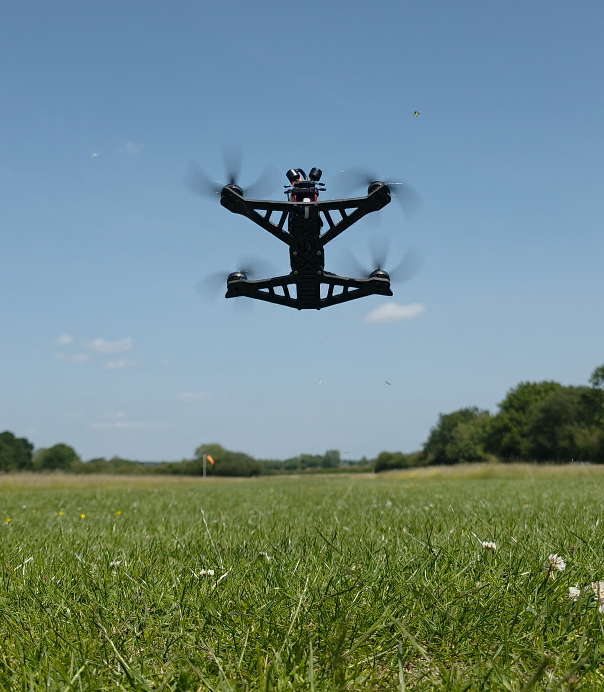

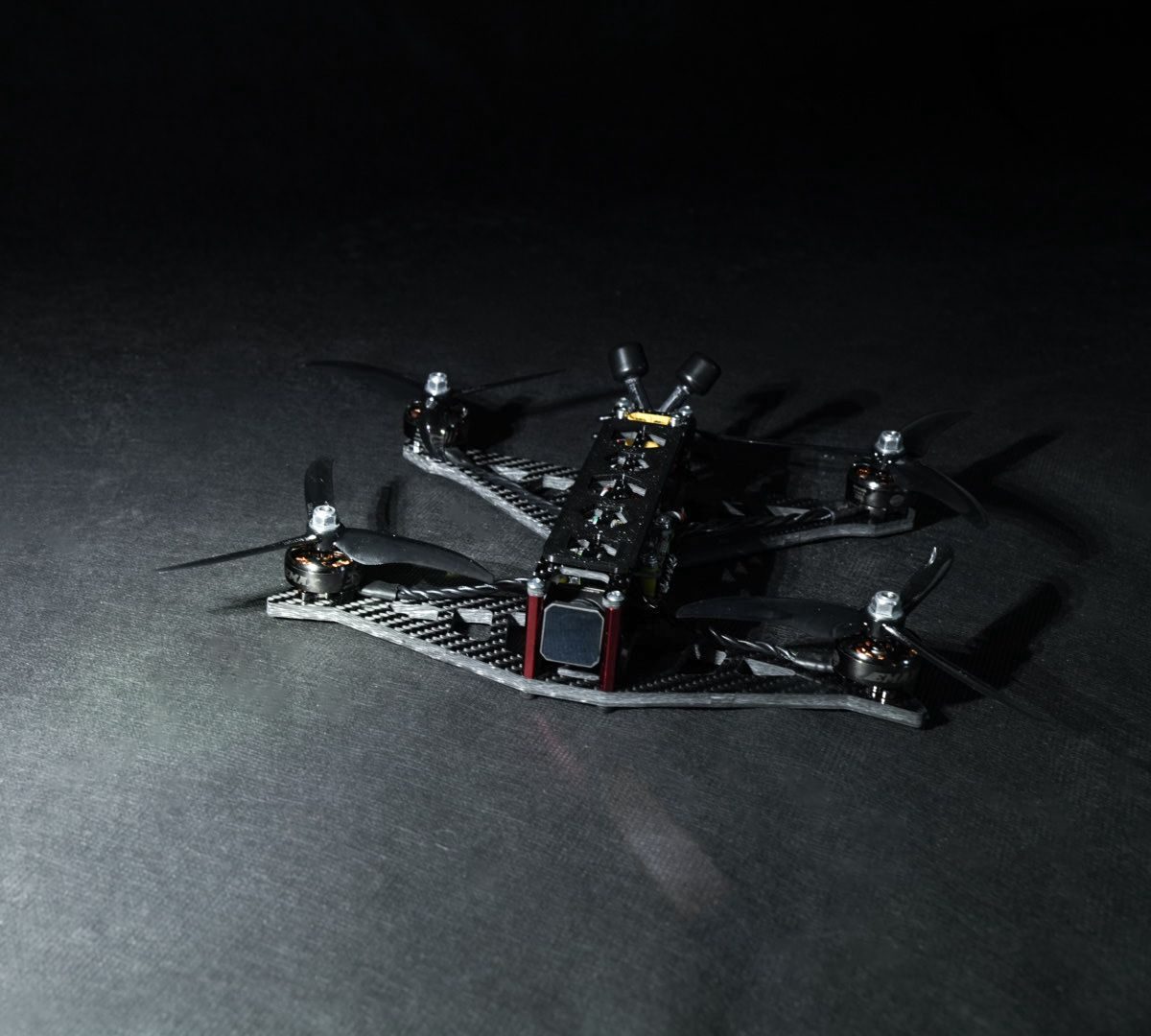

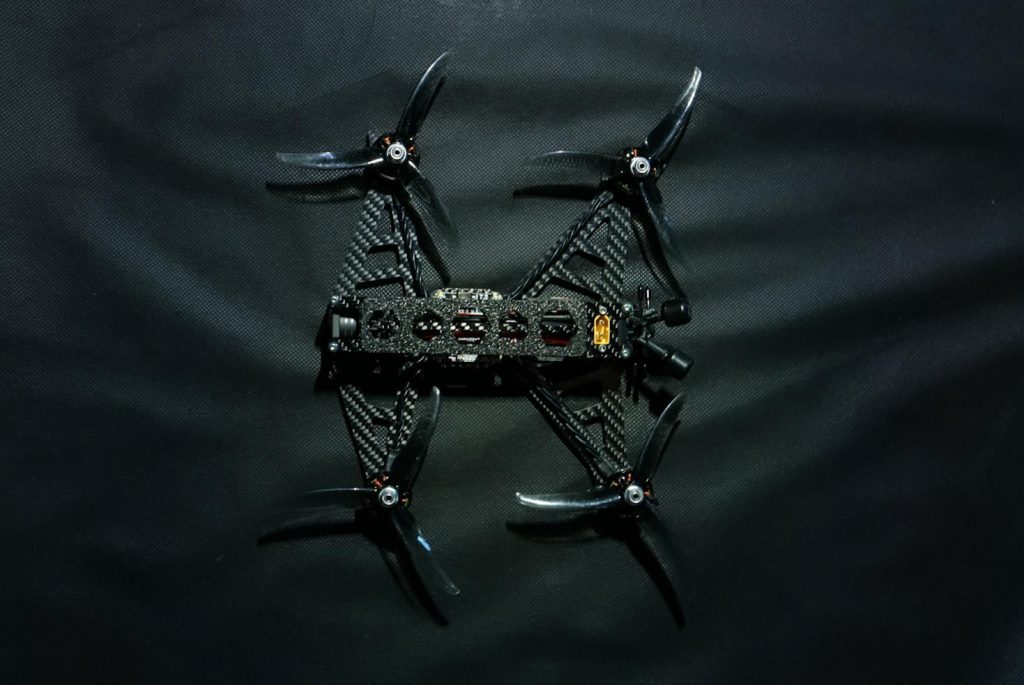

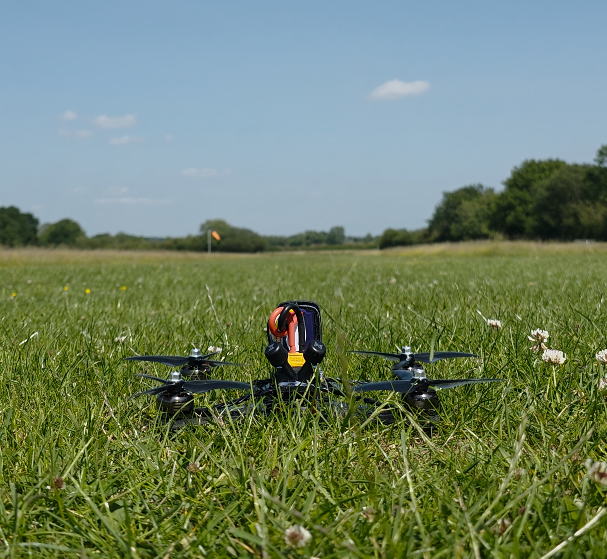

Rattler is our 5 inch FPV drone, built around the Intrepid Minds FPV parts ecosystem to allow the platform to configured with the ideal system based on the use case requirements.
- Freestyle FPV PNP drone.
- Size: 5″ class.
- Agile and robust built using a custom carbon fibre frame.
- Modular and customizable.
- Freestyle and racing capabilities.
- Easy learning curve from beginner to pro.
- Flight modes: Stabilized, Horizon (stabilized with flips), Acro.
- Analog or digital FPV video feed transmission (based on requirement).
- Onboard and offboard recording with livestream at 4k 60FPS max (Digital version).
- Hassle-free battery installation: 4S to 6S LiPo battery
SPECIFICATION
Frame class |
5″ |
Top Speed |
100+ mph (Estimate) |
Endurance |
10 minutes (mixed flight modes), 15 minutes (Hover) using a 25Ah 4S 80C/120C LiPo (Estimate) |
Communication range |
2km at an altitude of 400ft (120m) AGL at 2.4GHz |
MTOW |
800g |
Video format type |
Analog or Digital |
Video Quality |
4K/60fps for clear low-light footage |
Video link type |
5.8GHz (Both Digital and Analog) |
Frequency Channel |
5.8GHz 48CH (Analog), 5.725-5.850GHz (Digital) |
Output Power |
PIT/25mW/200mW/400mW/800mW* (Analog), 25mW (Digital) |
*using output power above 25mW may require operational permission from the local aviation authority
